New » Ski-Doo » MX Z X Rotax® 800R Power T.E.K.
Model Quick Search

$10,699.00

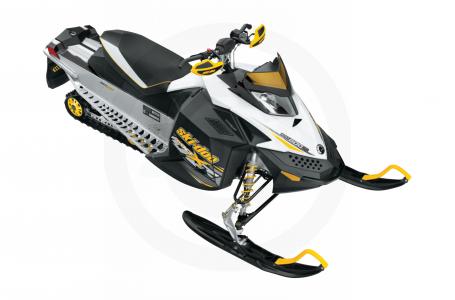

2009 Ski-Doo MX Z X Rotax® 800R Power T.E.K.
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The ultimate MX Z sled, bred from champion snocross and cross-country racers. Race sled looks and state-of-the-art shock packages.

  • NEW E-TEC® technology choice
  • 151 hp 800R Power T.E.K. engine choice
  • REV-XP platform
  • Brembo hydraulic brake and racing braided line
  • Lightweight front suspension components
  • KAYABA‡ front and rear shocks HPG Clickers T-A alu.
  • Lightweight 1.25-inch RipSaw‡ track
  • REV-XP racing seat
  • Riser block / Handlebar wind deflectors / Low windshield
  • Multi-function digital gauge w/ display
  • RER™ electronic reverse
  • Electric fuel gauge
COLOR
  • Bright White/Black
  • Deep Black
ENGINE
  • Engine: Rotax 800R Power T.E.K.
  • Engine details: Liquid-cooled, 3-D R.A.V.E.™
  • Cylinders: 2
  • Displacement: 799.5 cc / 48.8 in³
  • Bore: 82 mm / 3.2 in
  • Stroke: 75.7 mm / 3 in
  • Maximum engine speed: 8150 RPM
  • Carburetion: 2X TM-40
  • Recommended fuel type: Premium unleaded
  • Minimum octane: 91
  • Fuel tank: 40 liters / 10.6 gallons
  • Oil tank: 3.7 liters / 3.9 quarts
  • Exhaust system: Single tuned-pipe, baffle muffler
POWERTRAIN
  • Drive clutch type: TRA™ VII
  • Driven clutch type: QRS
  • Engagement: 3800 RPM
  • Clutches center distance: 258.7 mm / 10.18 in
  • Small sprocket number of teeth: 27
  • Large sprocket number of teeth: 45
  • Drive sprocket number of teeth: 8
  • Drive sprocket diameter: 183 mm / 7.2 in
  • Brake system: Brembo hydraulic brake & racing braided line
SUSPENSION
  • Front suspension: Dual A-arm front suspension
  • Front shock: KAYABA HPG Clicker T-A alu.
  • Front suspension max. travel: 229 mm / 9 in
  • Rear suspension: SC™-5
  • Front arm shock: KAYABA HPG™ T-A alu.
  • Rear arm shock: KAYABA HPG T-A alu. Racing Clicker
  • Rear suspension max. travel: 381 mm / 15 in
DIMENSIONS
  • Vehicle overall length: 2890 mm / 113.8 in
  • Vehicle overall width: 1217 mm / 47.9 in
  • Vehicle overall height: 1000 mm / 39.4 in
  • Official dry weight: 193 kg / 425 lb
  • Ski stance: 1195 mm / 47 in
  • Ski overall length: 1066 mm / 42 in
  • Ski width: 145 mm / 5.7 in
  • Track nominal width: 381 mm / 15 in
  • Track nominal length: 3051 mm / 120 in
  • Track profile height: 31.8 mm / 1.25 in
ADDITIONAL FEATURES
  • Skis: Pilot™ 5.7
  • Seating: REV-XP racing
  • Electric start: Optional
  • Reverse: RER
  • Heated grips: Standard
  • Speedometer: Standard
  • Mirrors: Optional
  • Windshield: Low
  • Handlebar: Riser block (115 mm / 4.5 in) / J-hooks / Handlebar wind deflectors
  • Anti-slip running boards: Standard
NOTES:

BRP reserves the right at anytime to discontinue or change specifications, price, design, features, models or equipment without incurring any obligation.


Specifications

Engine
Engine Type Rotax 800R Power T.E.K., 3-D R.A.V.E.™
Displacement 48.8 cu. in. (799.5 cc)
Cylinders 2
Bore x Stroke 3.2" x 3" (82 x 75.7 mm)
Engine Cooling Liquid-cooled
Carburetion 2X TM-40
Exhaust Single tuned-pipe, baffle muffler
Drivetrain
Brake Type Brembo hydraulic brake & racing braided line
Drive Clutch TRA™ VII
Driven Clutch QRS
Suspension
Front Suspension Dual A-arm front suspension
Front Travel 9 in. (229 mm)
Rear Suspension SC™-5
Rear Travel 15 in. (381 mm)
Ski Type Pilot™ 5.7
Ski Stance 47 in. (1195 mm)
Track Dimensions 120" x 15" x 1.25" (3051 x 381 x 31.8 mm)
General
Speedometer Standard
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 425 lbs. (193 kg)
Windshield Low
Color Bright White/Black or Deep Black
Options
Electric Start Optional
Hand & Thumb Warmers Standard
Reverse RER
Mirrors Optional

Compare Models

 Print








Year 2009
Manufacturer Ski-Doo
Model MX Z X Rotax® 800R Power T.E.K.
Style Performance
MSRP* $10,699.00
Drivetrain
Brake Type Brembo hydraulic brake & racing braided line
Drive Clutch TRA™ VII
Driven Clutch QRS
Engine
Engine Type Rotax 800R Power T.E.K., 3-D R.A.V.E.™
Displacement 48.8 cu. in. (799.5 cc)
Bore x Stroke 3.2" x 3" (82 x 75.7 mm)
Cylinders 2
Engine Cooling Liquid-cooled
Carburetion 2X TM-40
Ignition
Exhaust Single tuned-pipe, baffle muffler
Alternator
General
Speedometer Standard
Tachometer
Odometer
Headlight
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 425 lbs. (193 kg)
Windshield Low
Color Bright White/Black or Deep Black
Warranty
Options
Electric Start Optional
Hand & Thumb Warmers Standard
Reverse RER
Mirrors Optional
Suspension
Front Suspension Dual A-arm front suspension
Front Travel 9 in. (229 mm)
Rear Suspension SC™-5
Rear Travel 15 in. (381 mm)
Ski Type Pilot™ 5.7
Ski Stance 47 in. (1195 mm)
Track Type
Track Dimensions 120" x 15" x 1.25" (3051 x 381 x 31.8 mm)
