Ski-Doo MX Z TNT Rotax® 1200 4-TEC LEWISTON MOTOR SPORTS LEWISTON, MI (989) 786-8800

Showcase Product Detail

New » Ski-Doo » MX Z TNT Rotax® 1200 4-TEC

	Starting At: $10,549.00

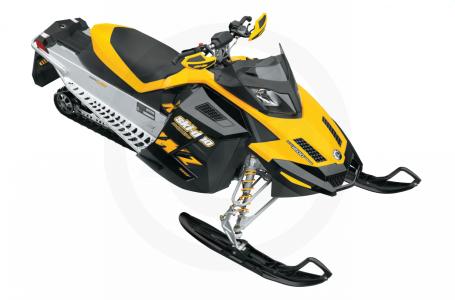

2009 Ski-Doo MX Z TNT Rotax® 1200 4-TEC

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

Our lightest, highest tech in-season MX Z model.

NEW 4-stroke sled under 500 pounds!
NEW REV-XR platform
NEW REV-XR glossy side panels
Brembo hydraulic brake
Lightweight front suspension components
Pilot™ 5.7 skis
KAYABA‡ HPG™ T-A alu. shocks
SC™-5 rear suspension
Lightweight 1-inch lug RipSaw‡ track
Riser block / Handlebar wind deflectors / Low windshield
Analog gauge w/ display
Electric fuel gauge
Mechanical reverse

COLOR

Yellow/Black

ENGINE

Engine: Rotax 1200 4-TEC
Engine details: Liquid-cooled, 4-stroke D.O.H.C., dry sump
Cylinders: 3
Displacement: 1170.7 cc / 46.9 in³
Bore: 91 mm / 3.6 in
Stroke: 60 mm / 2.4 in
Maximum engine speed: 7800 RPM
Carburetion: EFI
Recommended fuel type: Regular unleaded
Minimum octane: 87
Fuel tank: 40 liters / 10.6 gallons
Oil tank: 3.7 liters / 3.9 quarts
Exhaust system: Single head-pipe, baffle muffler

POWERTRAIN

Drive clutch type: TRA™ IV
Driven clutch type: QRS
Engagement: 2800 RPM
Clutches center distance: 259.1 mm / 10.20 po
Small sprocket number of teeth: 27
Large sprocket number of teeth: 45
Drive sprocket number of teeth: 8
Drive sprocket diameter: 183 mm / 7.2 in
Brake system: Brembo hydraulic brake

SUSPENSION

Front suspension: Dual A-arm front suspension
Front shock: KAYABA HPG T-A alu.
Front suspension max. travel: 229 mm / 9 in
Rear suspension: SC-5
Front arm shock: KAYABA HPG T-A alu.
Rear arm shock: KAYABA HPG T-A alu.
Rear suspension max. travel: 381 mm / 15 in

DIMENSIONS

Vehicle overall length: 2890 mm / 113.8 in
Vehicle overall width: 1217 mm / 47.9 in
Vehicle overall height: 1015 mm / 40 in
Official dry weight: 226 kg / 499 lb
Ski stance: 1195 mm / 47 in
Ski overall length: 1066 mm / 42 in
Ski width: 145 mm / 5.7 in
Track nominal width: 381 mm / 15 in
Track nominal length: 3051 mm / 120 in
Track profile height: 25.4 mm / 1 in

ADDITIONAL FEATURES

Skis: Pilot 5.7
Seating: REV-XP racing
Electric start: Standard
Heated grips: Standard
Speedometer: Standard
Tachometer: Standard
Mirrors: Optional
Windshield: Low
Handlebar: Riser block (115 mm / 4.5 in) / J-hooks / Handlebar wind deflectors
Anti-slip running boards: Standard

NOTES:

BRP reserves the right at anytime to discontinue or change specifications, price, design, features, models or equipment without incurring any obligation.

Specifications

Engine
Engine Type	Rotax 1200 4-TEC, 4-stroke D.O.H.C., dry sump
Displacement	46.9 cu. in. (1170.7 cc)
Cylinders	3
Bore x Stroke	3.6" x 2.4" (91 x 60 mm)
Engine Cooling	Liquid-cooled
Carburetion	EFI
Exhaust	Single head-pipe, baffle muffler
Drivetrain
Brake Type	Brembo hydraulic brake
Drive Clutch	TRA™ IV
Driven Clutch	QRS
Suspension
Front Suspension	Dual A-arm front suspension
Front Travel	9 in. (229 mm)
Rear Suspension	SC-5
Rear Travel	15 in. (381 mm)
Ski Type	Pilot 5.7
Ski Stance	47 in. (1195 mm)
Track Type	RipSaw Track
Track Dimensions	120" x 15" x 1" (3051 x 381 x 25.4 mm)
General
Speedometer	Standard
Tachometer	Standard
Fuel Capacity	10.6 gal. (40 l)
Dry Weight	499 lbs. (226 kg)
Windshield	Low
Color	Yellow/Black
Options
Electric Start	Standard
Hand & Thumb Warmers	Standard
Mirrors	Optional

Compare Models

Drivetrain

Year	2009
Manufacturer	Ski-Doo
Model	MX Z TNT Rotax® 1200 4-TEC
Style	Performance
MSRP*	$10,549.00
Brake Type	Brembo hydraulic brake
Drive Clutch	TRA™ IV
Driven Clutch	QRS
Engine
Engine Type	Rotax 1200 4-TEC, 4-stroke D.O.H.C., dry sump
Displacement	46.9 cu. in. (1170.7 cc)
Bore x Stroke	3.6" x 2.4" (91 x 60 mm)
Cylinders	3
Engine Cooling	Liquid-cooled
Carburetion	EFI
Ignition
Exhaust	Single head-pipe, baffle muffler
Alternator
General
Speedometer	Standard
Tachometer	Standard
Odometer
Headlight
Fuel Capacity	10.6 gal. (40 l)
Dry Weight	499 lbs. (226 kg)
Windshield	Low
Color	Yellow/Black
Warranty
Options
Electric Start	Standard
Hand & Thumb Warmers	Standard
Reverse
Mirrors	Optional
Suspension
Front Suspension	Dual A-arm front suspension
Front Travel	9 in. (229 mm)
Rear Suspension	SC-5
Rear Travel	15 in. (381 mm)
Ski Type	Pilot 5.7
Ski Stance	47 in. (1195 mm)
Track Type	RipSaw Track
Track Dimensions	120" x 15" x 1" (3051 x 381 x 25.4 mm)
