New » Ski-Doo » MX Z Trail Rotax® 500SS
Model Quick Search

$7,299.00

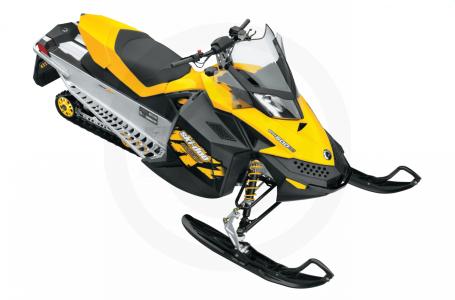

2009 Ski-Doo MX Z Trail Rotax® 500SS
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Ideal for economy-minded trail riders looking for great cornering, bump capability and value.

  • REV-XP platform
  • Brembo hydraulic brake
  • Dual A-arm front suspension
  • Pilot™ 5.7 skis
  • SC™-5 rear suspension
  • Lightweight 1-inch lug RipSaw track
  • Analog gauge w/ display
  • Electric fuel gauge
  • RER™ electronic reverse
  • Riser block 115 mm / 4.5 in
COLOR
  • Yellow/Black
ENGINE
  • Engine: Rotax 500SS
  • Engine details: Liquid-cooled, R.A.V.E.™
  • Cylinders: 2
  • Displacement: 597 cc / 36.4 in³
  • Bore: 76 mm / 3 in
  • Stroke: 65.8 mm / 2.6 in
  • Maximum engine speed: 8000 RPM
  • Carburetion: 2X TM-40
  • Recommended fuel type: Regular unleaded
  • Minimum octane: 87
  • Fuel tank: 40 liters / 10.6 gallons
  • Oil tank: 3.7 liters / 3.9 quarts
  • Exhaust system: Single tuned-pipe, baffle muffler
POWERTRAIN
  • Drive clutch type: TRA™ III
  • Driven clutch type: QRS
  • Engagement: 3800 RPM
  • Clutches center distance: 258.7 mm / 10.18 in
  • Small sprocket number of teeth: 25
  • Large sprocket number of teeth: 45
  • Drive sprocket number of teeth: 8
  • Drive sprocket diameter: 183 mm / 7.2 in
  • Brake system: Brembo hydraulic brake
SUSPENSION
  • Front suspension: Dual A-arm front suspension
  • Front shock: Motion Control
  • Front suspension max. travel: 229 mm / 9 in
  • Rear suspension: SC-5
  • Front arm shock: Motion Control
  • Rear arm shock: Motion Control
  • Rear suspension max. travel: 381 mm / 15 in
DIMENSIONS
  • Vehicle overall length: 2890 mm / 113.8 in
  • Vehicle overall width: 1217 mm / 47.9 in
  • Vehicle overall height: 1168 mm / 46.0 in
  • Official dry weight: 188 kg / 415 lb
  • Ski stance: 1195 mm / 47 in
  • Ski overall length: 1066 mm / 42 in
  • Ski width: 145 mm / 5.7 in
  • Track nominal width: 381 mm / 15 in
  • Track nominal length: 3051 mm / 120 in
  • Track profile height: 25.4 mm / 1 in
ADDITIONAL FEATURES
  • Skis: Pilot 5.7
  • Seating: REV-XP
  • Electric start: Optional
  • Heated grips: Standard
  • Speedometer: Standard
  • Tachometer: Standard
  • Mirrors: Optional
  • Windshield: Medium
  • Handlebar: Riser block 115 mm / 4.5 in
  • Anti-slip running boards: Standard
NOTES:

BRP reserves the right at anytime to discontinue or change specifications, price, design, features, models or equipment without incurring any obligation.


Specifications

Engine
Engine Type Rotax 500SS, R.A.V.E.™
Displacement 36.4 cu. in. (597 cc)
Bore x Stroke 3" x 2.6" (76 x 65.8 mm)
Cylinders 2
Engine Cooling Liquid-cooled
Carburetion 2X TM-40
Exhaust Single tuned-pipe, baffle muffler
Drivetrain
Brake Type Brembo hydraulic brake
Drive Clutch TRA™ III
Driven Clutch QRS
Suspension
Front Suspension Dual A-arm front suspension
Front Travel 9 in. (229 mm)
Rear Suspension SC-5
Rear Travel 15 in. (381 mm)
Ski Type Pilot 5.7
Ski Stance 47 in. (1195 mm)
Track Type RipSaw Track
Track Dimensions 120" x 15" x 1" (3051 x 381 x 25.4 mm)
General
Speedometer Standard
Tachometer Standard
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 415 lbs. (188 kg)
Windshield Medium
Color Yellow/Black
Options
Electric Start Optional
Hand & Thumb Warmers Standard
Reverse RER
Mirrors Optional

Compare Models

 Print








Year 2009
Manufacturer Ski-Doo
Model MX Z Trail Rotax® 500SS
Style Performance
MSRP* $7,299.00
Drivetrain
Brake Type Brembo hydraulic brake
Drive Clutch TRA™ III
Driven Clutch QRS
Engine
Engine Type Rotax 500SS, R.A.V.E.™
Displacement 36.4 cu. in. (597 cc)
Bore x Stroke 3" x 2.6" (76 x 65.8 mm)
Cylinders 2
Engine Cooling Liquid-cooled
Carburetion 2X TM-40
Ignition
Exhaust Single tuned-pipe, baffle muffler
Alternator
General
Speedometer Standard
Tachometer Standard
Odometer
Headlight
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 415 lbs. (188 kg)
Windshield Medium
Color Yellow/Black
Warranty
Options
Electric Start Optional
Hand & Thumb Warmers Standard
Reverse RER
Mirrors Optional
Suspension
Front Suspension Dual A-arm front suspension
Front Travel 9 in. (229 mm)
Rear Suspension SC-5
Rear Travel 15 in. (381 mm)
Ski Type Pilot 5.7
Ski Stance 47 in. (1195 mm)
Track Type RipSaw Track
Track Dimensions 120" x 15" x 1" (3051 x 381 x 25.4 mm)
