Ski-Doo MX Z 550 X Rotax® 550F LEWISTON MOTOR SPORTS LEWISTON, MI (989) 786-8800

Showcase Product Detail

New » Ski-Doo » MX Z 550 X Rotax® 550F

	Starting At: $6,599.00

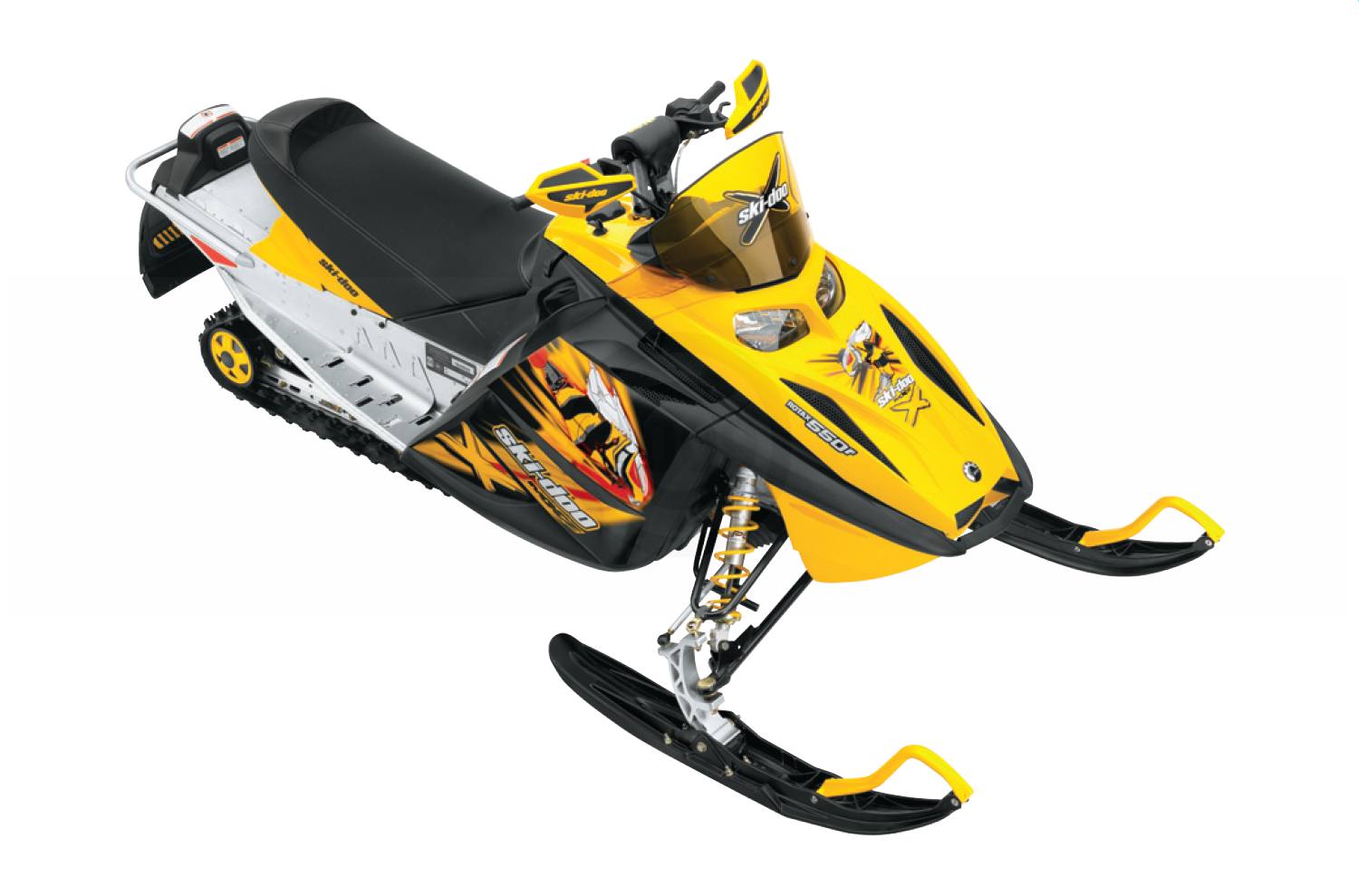

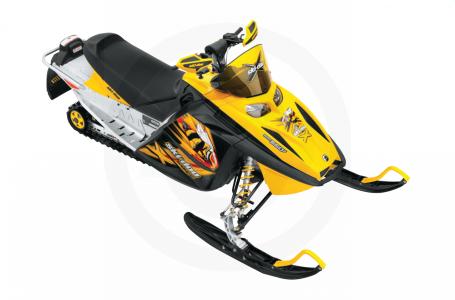

2009 Ski-Doo MX Z 550 X Rotax® 550F

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

For the rider who wants a race-inspired, ultra lightweight, more economical sled.

550F engine
REV® platform
KAYABA‡ HPG™ Clicker T-A front shocks
Pilot™ 5.7 dual runner skis
KAYABA HPG T-A rear shocks
1.25-inch lug RipSaw‡ track
Racing seat / Tunnel brake light
Tunnel reinforcement
Steel-braided brake line
Riser block / Handlebar wind deflectors / Low windshield
RER™ electronic reverse

COLOR

Yellow/Black

ENGINE

Engine: Rotax 550F
Engine details: Axial fan-cooled, cylinder reed porting
Cylinders: 2
Displacement: 553.4 cc / 33.8 in³
Bore: 76 mm / 3 in
Stroke: 61 mm / 2.4 in
Maximum engine speed: 7000 RPM
Carburetion: 2X VM-34
Recommended fuel type: Regular unleaded
Minimum octane: 87
Fuel tank: 40 liters / 10.6 gallons
Oil tank: 3.5 liters / 3.7 quarts
Exhaust system: Single tuned-pipe, baffle muffler

POWERTRAIN

Drive clutch type: Bombardier Lite
Driven clutch type: LPV 27
Engagement: 3500 RPM
Clutches center distance: 257.5 mm / 10.14 in
Small sprocket number of teeth: 19
Large sprocket number of teeth: 43
Drive sprocket number of teeth: 10
Drive sprocket diameter: 200.5 mm / 7.8 in
Brake system: Hydraulic, RT-Type brake lever

SUSPENSION

Front suspension: R.A.S.® w/sway bar
Front shock: KAYABA HPG Clicker T-A
Front suspension max. travel: 229 mm / 9 in
Rear suspension: SC™-4
Front arm shock: KAYABA HPG T-A
Rear arm shock: KAYABA HPG T-A
Rear suspension max. travel: 381 mm / 15 in

DIMENSIONS

Vehicle overall length: 2885 mm / 113.6 in
Vehicle overall width: 1217 mm / 47.9 in
Vehicle overall height: 1022 mm / 40.2 in
Official dry weight: 197 kg / 435 lb
Ski stance: 1195 mm / 47 in
Ski overall length: 1066 mm / 42 in
Ski width: 145 mm / 5.7 in
Track nominal width: 381 mm / 15 in
Track nominal length: 3072 mm / 121 in
Track profile height: 31.8 mm / 1.25 in

ADDITIONAL FEATURES

Skis: Pilot 5.7 dual runner
Seating: 440 racing
Electric start: Optional
Heated grips: Standard
Speedometer: Standard
Tachometer: Standard
Mirrors: Optional
Windshield: Low
Handlebar: Riser block / Handlebar wind deflectors
Anti-slip running boards: Standard

NOTES:

BRP reserves the right at anytime to discontinue or change specifications, price, design, features, models or equipment without incurring any obligation.

Specifications

Engine
Engine Type	Rotax 550F, cylinder reed porting
Displacement	33.8 cu .in. (553.4 cc)
Bore x Stroke	3" x 2.4" (76 x 61 mm)
Cylinders	2
Engine Cooling	Axial fan-cooled
Carburetion	2X VM-34
Exhaust	Single tuned-pipe, baffle muffler
Drivetrain
Brake Type	Hydraulic, RT-Type brake lever
Drive Clutch	Bombardier Lite
Driven Clutch	LPV 27
Suspension
Front Suspension	R.A.S.® w/sway bar
Front Travel	9 in. (229 mm)
Rear Suspension	SC™-4
Rear Travel	15 in. (381 mm)
Ski Type	Pilot 5.7 dual runner
Ski Stance	47 in. (1195 mm)
Track Type	RipSaw Track
Track Dimensions	121" x 15" x 1.25" (3072 x 381 x 31.8 mm)
General
Speedometer	Standard
Tachometer	Standard
Fuel Capacity	10.6 gal. (40 l)
Dry Weight	435 lbs. (197 kg)
Windshield	Low
Color	Yellow/Black
Options
Electric Start	Optional
Hand & Thumb Warmers	Standard
Reverse	RER
Mirrors	Optional

Compare Models

Drivetrain

Year	2009
Manufacturer	Ski-Doo
Model	MX Z 550 X Rotax® 550F
Style	Performance
MSRP*	$6,599.00
Brake Type	Hydraulic, RT-Type brake lever
Drive Clutch	Bombardier Lite
Driven Clutch	LPV 27
Engine
Engine Type	Rotax 550F, cylinder reed porting
Displacement	33.8 cu .in. (553.4 cc)
Bore x Stroke	3" x 2.4" (76 x 61 mm)
Cylinders	2
Engine Cooling	Axial fan-cooled
Carburetion	2X VM-34
Ignition
Exhaust	Single tuned-pipe, baffle muffler
Alternator
General
Speedometer	Standard
Tachometer	Standard
Odometer
Headlight
Fuel Capacity	10.6 gal. (40 l)
Dry Weight	435 lbs. (197 kg)
Windshield	Low
Color	Yellow/Black
Warranty
Options
Electric Start	Optional
Hand & Thumb Warmers	Standard
Reverse	RER
Mirrors	Optional
Suspension
Front Suspension	R.A.S.® w/sway bar
Front Travel	9 in. (229 mm)
Rear Suspension	SC™-4
Rear Travel	15 in. (381 mm)
Ski Type	Pilot 5.7 dual runner
Ski Stance	47 in. (1195 mm)
Track Type	RipSaw Track
Track Dimensions	121" x 15" x 1.25" (3072 x 381 x 31.8 mm)

Current Promotions

There are currently no promotions available for this product.
